East Arctic #10
Peabody Museum, Harvard University
Cambridge, MA


Click thumbnail to enlarge...
The B&W  photos are courtesy of University Museum, Philadelphia.  These photographs were taken in the 1930s by W. P. Roop.

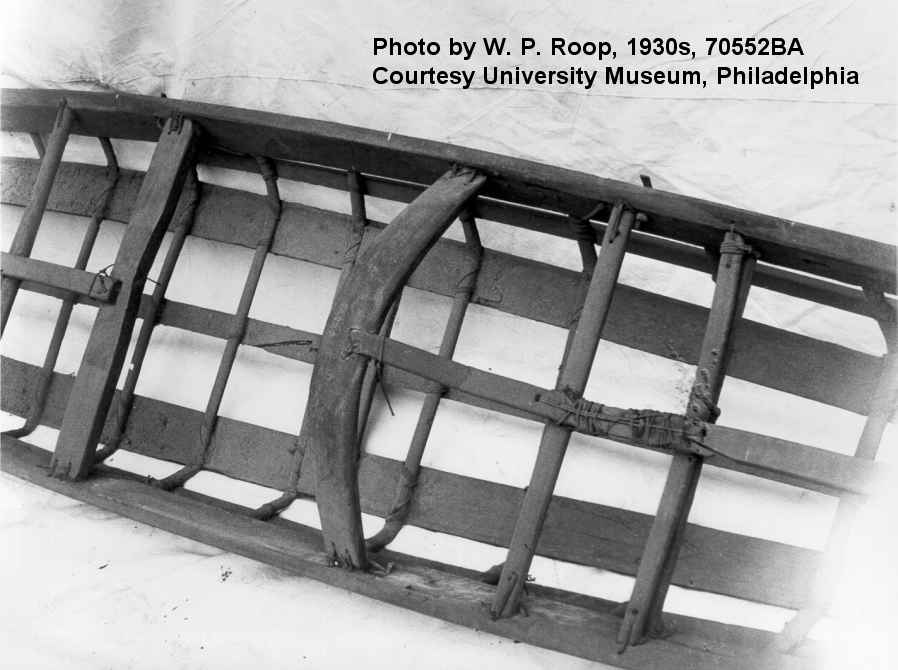

Cockpit  showing single bent coaming.  Cockpit showing forward cockpit deck beam (masik) and deck stringer. Cockpit  showing single bent coaming.

70552A

70552B

70553A

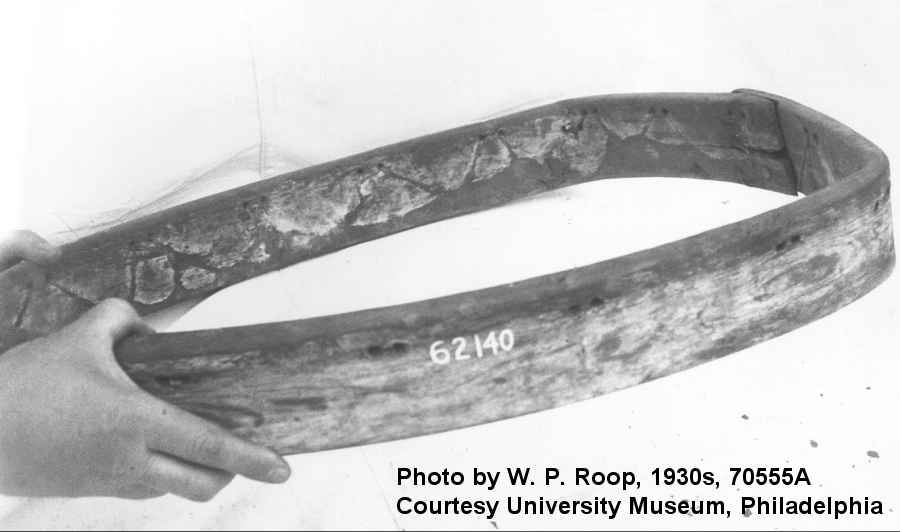

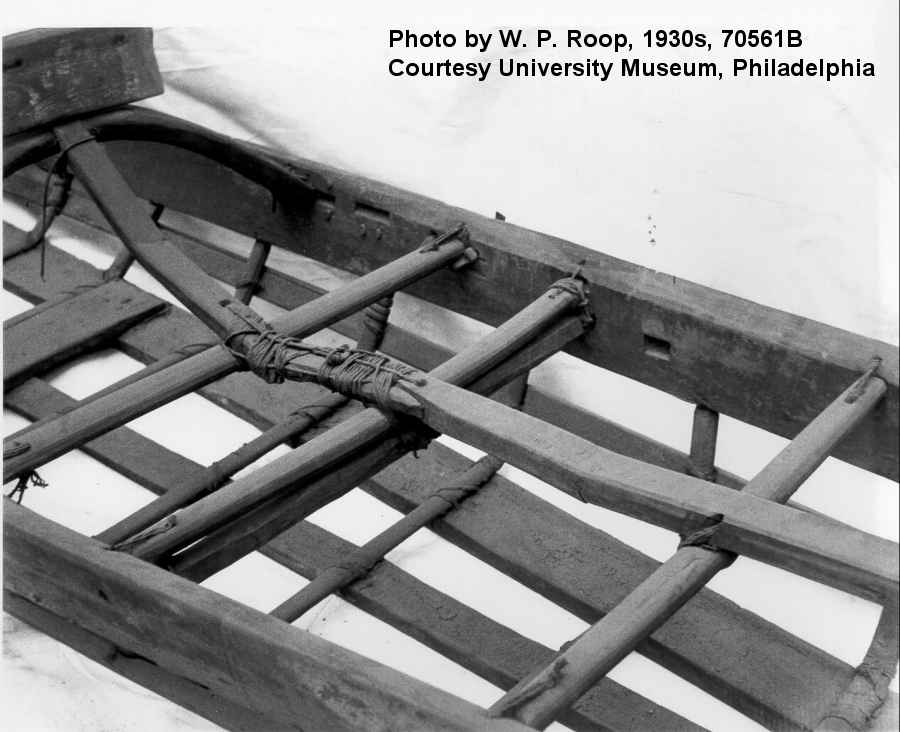

Stern.  Cockpit coaming. Forward deck stringer and deck beams.

70554A

70555A

70561B

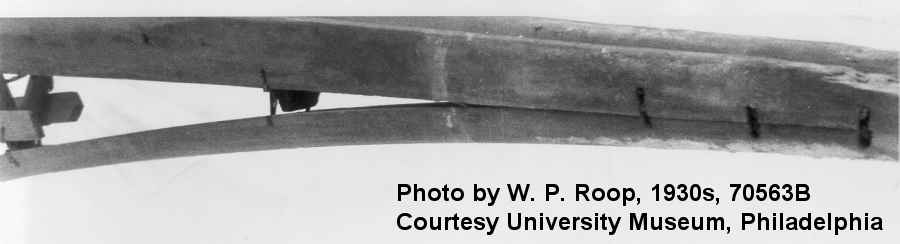

Join where bilge stringer comes in to keelson. Forward bow with side stringers. Bottom of bilge stringers and keelson.

70562A

70563A

70564A

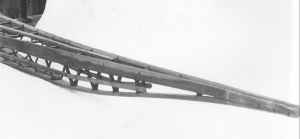

Forward showing deck stringer and deck beams. Tying on gunwales and keelson at bow. Aft section of deck stringers, gunwales and deck beams.

70565A

70566B

70568B

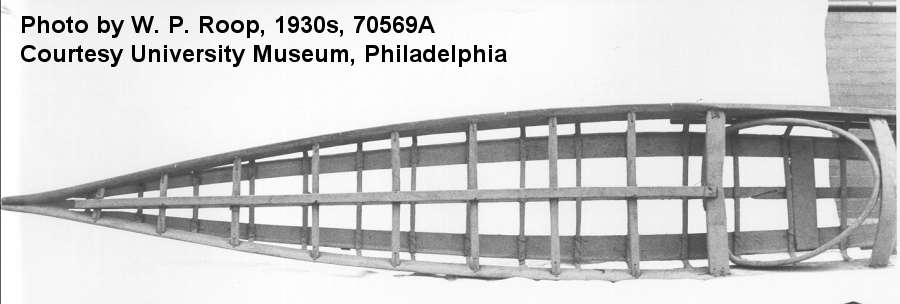

Plan view of aft kayak. Plan view of center of kayak. Plan view of bow of kayak.

70569A

70569B

70570A

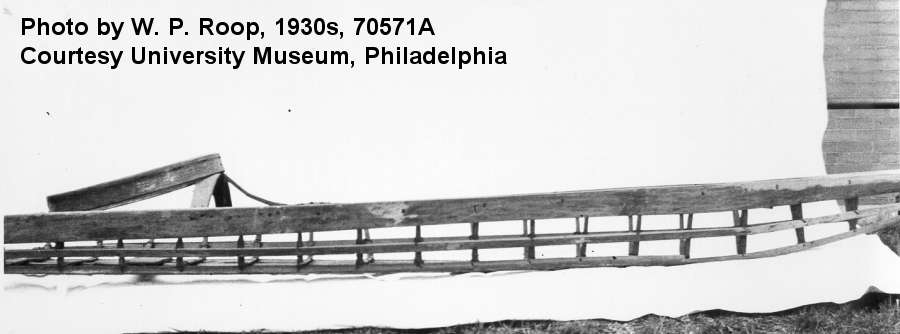

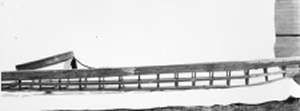

Side view of aft  kayak. Side view of center of kayak. Side view of bow of kayak.

70571B

70571A

70571B
